STUART PROJECT UPDATE
By: Tank Mechanic

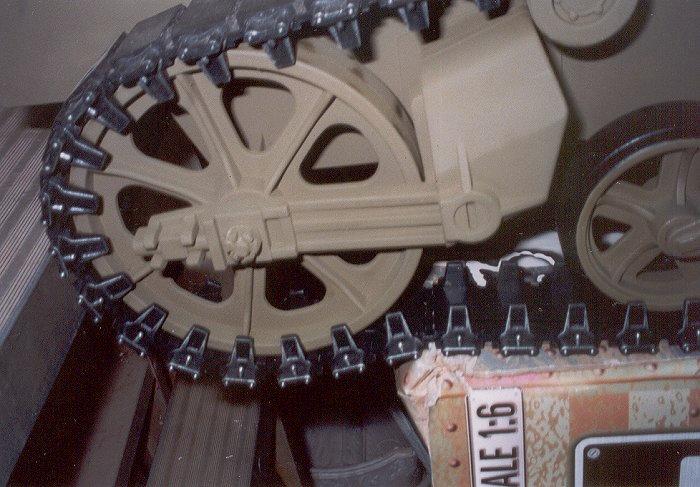

Detail on rear idler-screw hole on main casting filled and 1/4 in stud and castellated nut added to axle.

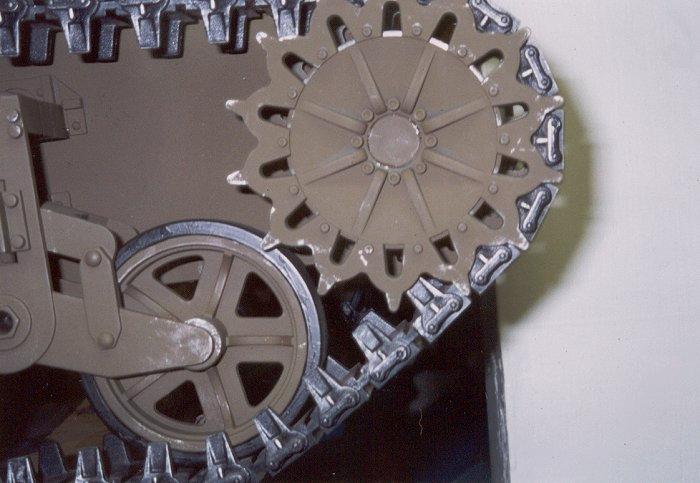

Covered screwhole in sprocket with plastic disc. (Idlers also covered)

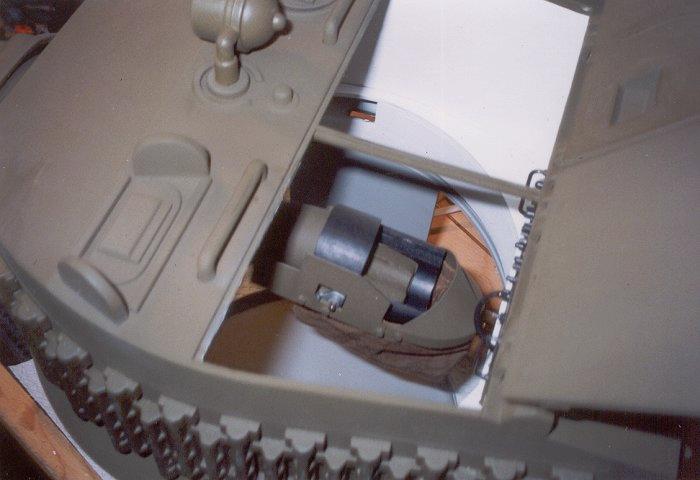

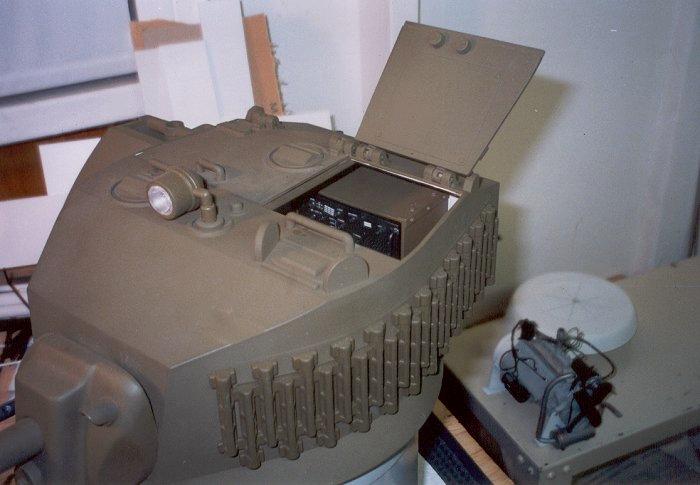

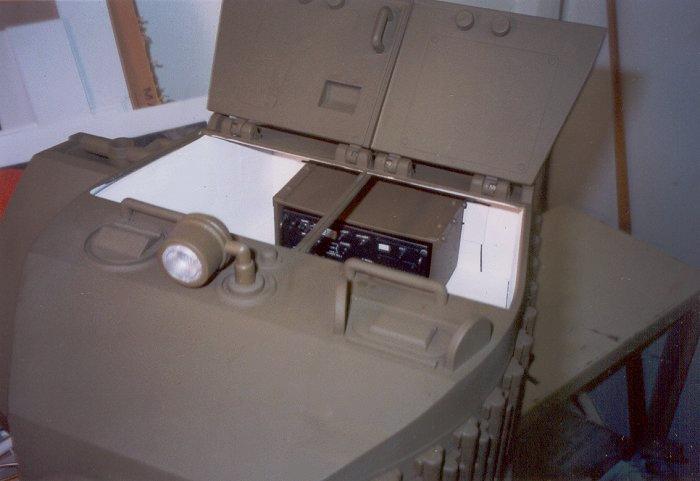

These show rework of turret hatches to work independently. Added cross bar is correct. Periscope is temp. missing from commander's hatch because it is backwards from 21C - Hatch periscope is rear vision (although capable of 360 degree rotation)

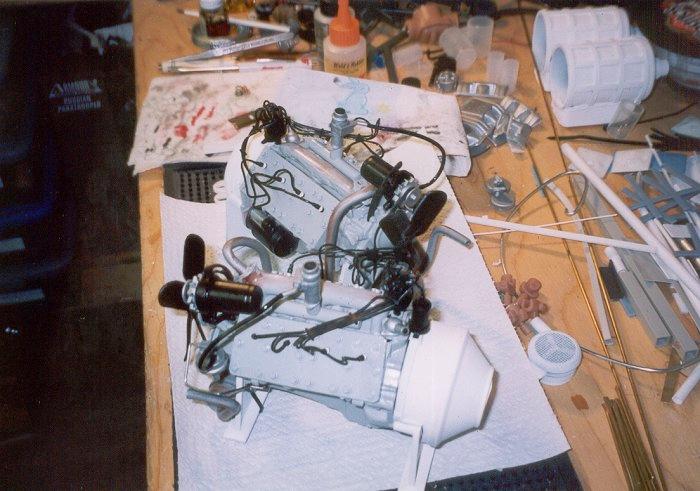

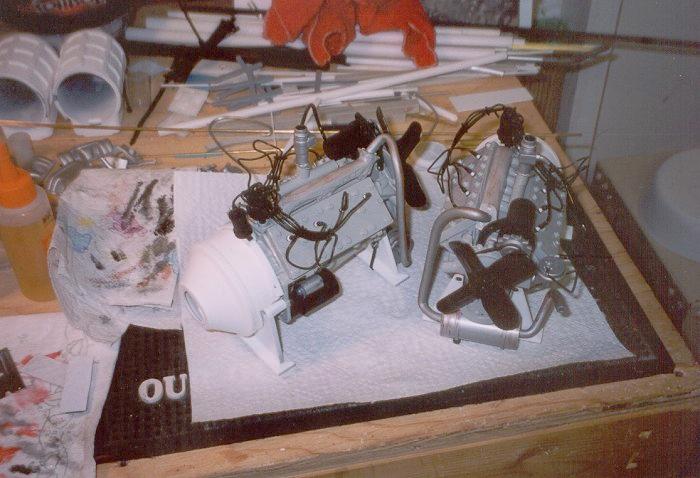

Engines finally completed (would have been easier if only one!)
